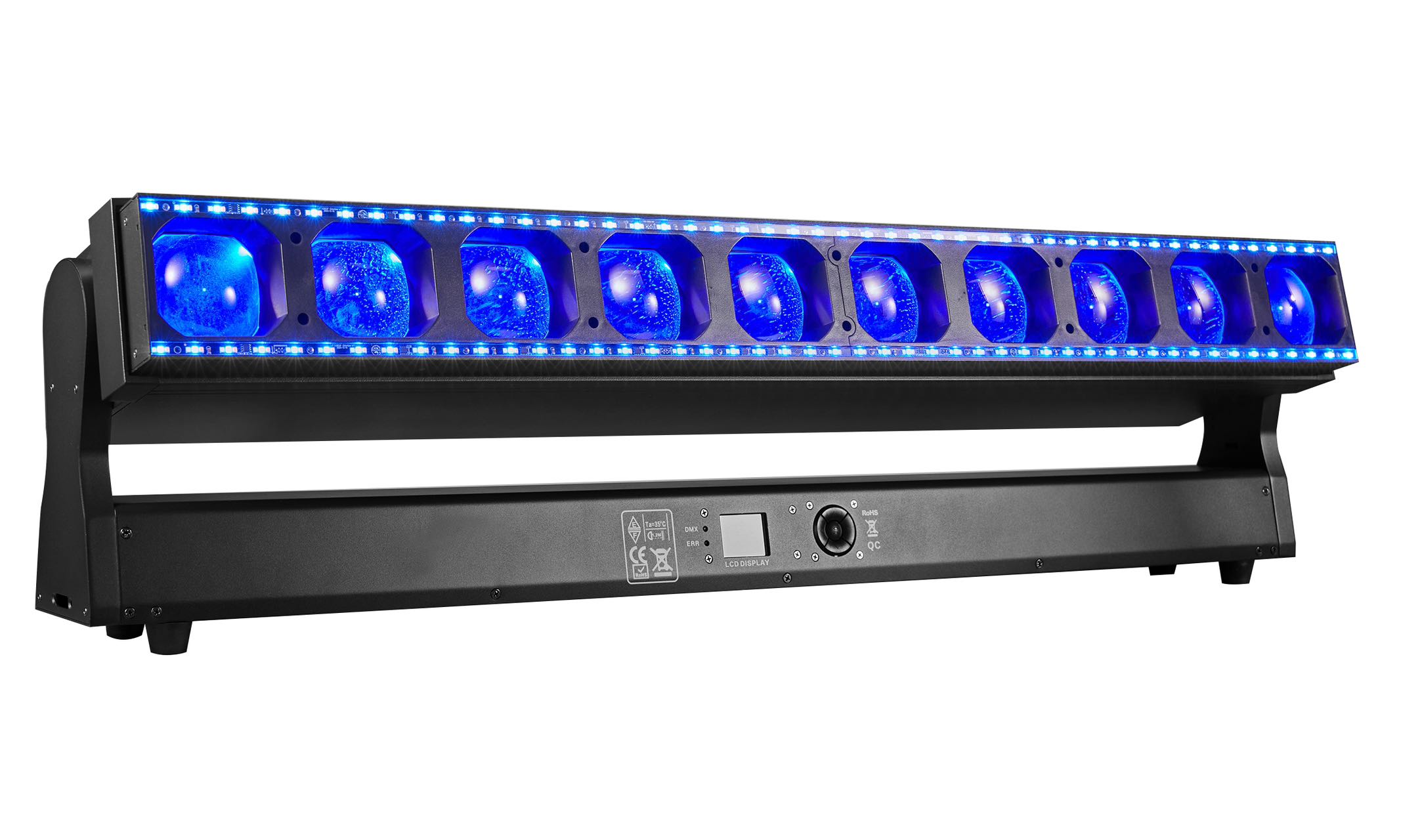

10*60W Rattlesnake

Product introduction

Light source:
Input power supply: 180-240V~ 50/60Hz

Power: 800 W

Power outlet: power connector input/output

Signal input/output: three-core or five-core cannon head socket, RJ45

Beam end:

10 x 60W RGBW LED

Strobe terminal:

96 x 3W CW LED

96 x 3W WW LED

96 x 0.5W RGB LED

White light color temperature: 6,300K

Light lux: 22,400 lm

LED life expectancy: 20,000 hours

Optical system

Zoom angle:

Beam angle: 2.8°-31° (beam end)

Spot angle: 5°-46° (beam end)

Control and procedures

5 keys

Control panel: LCD display

Control protocol: DMX512, RDM

DMX channel mode: 7 types

Channel mode: 17/27/99/108/168/8+100/8+160/170 channel

Software upgrade: update the software through DMX connection

Y-axis

Y-axis operation angle: 202°
