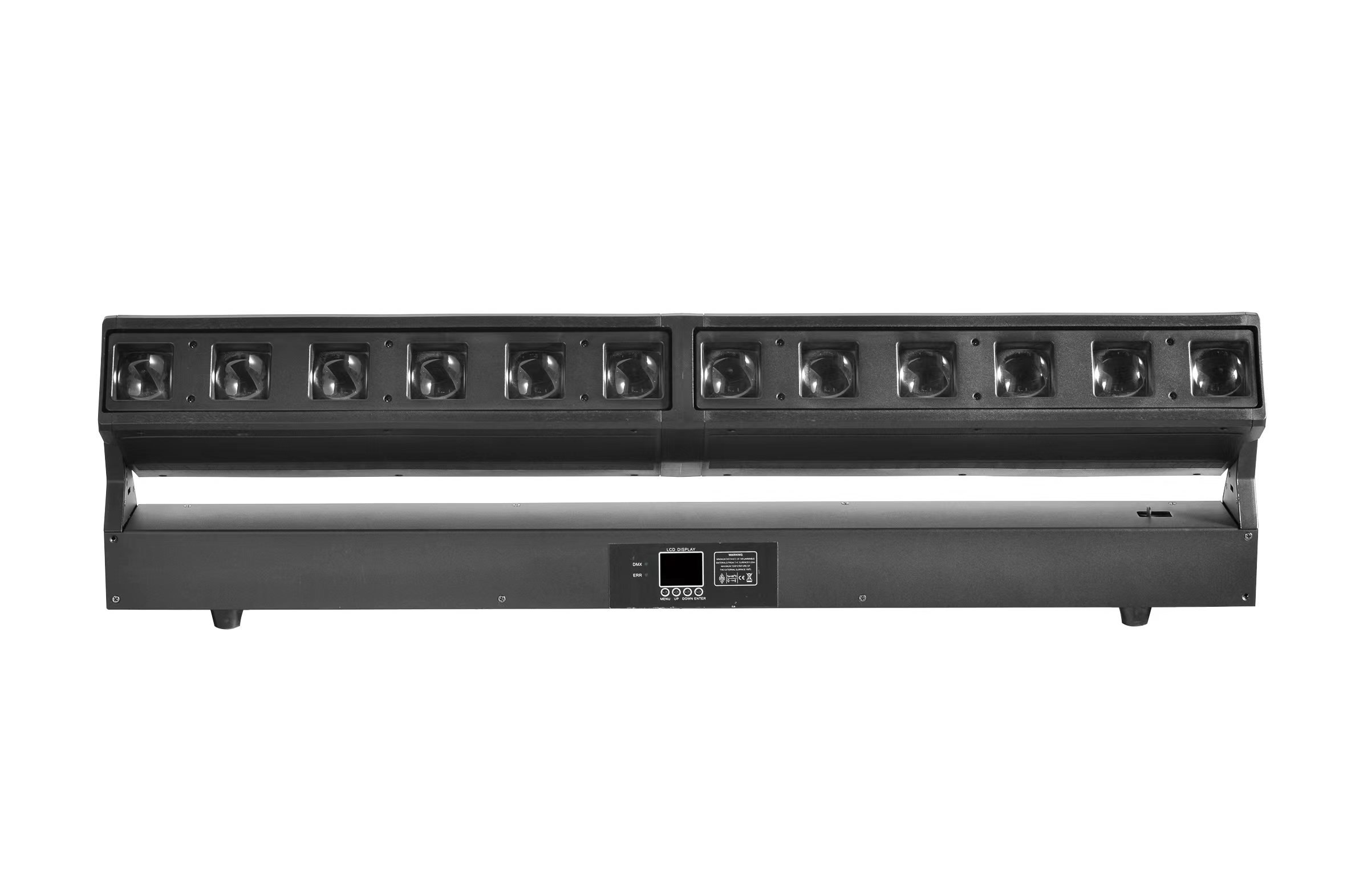

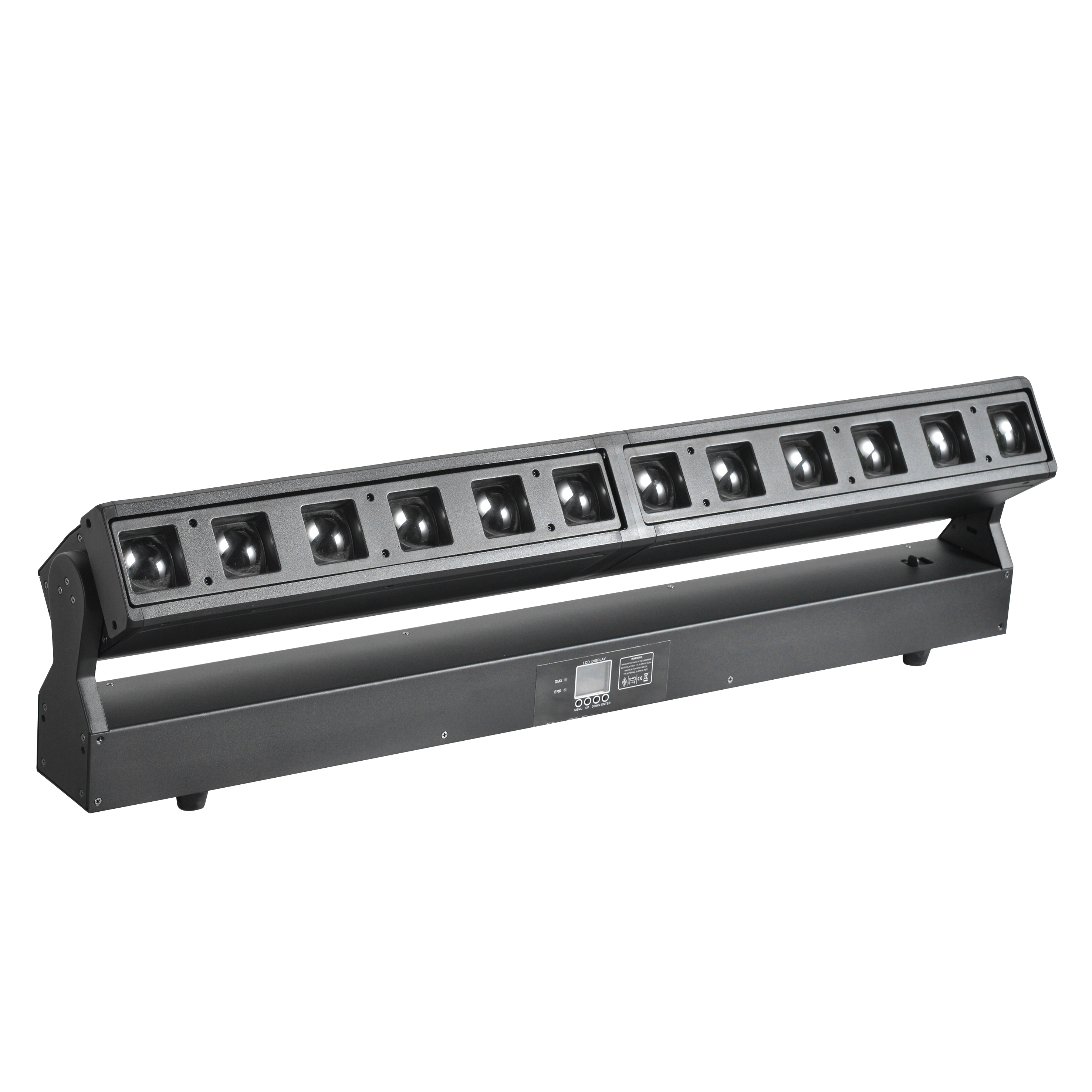

12*40WRattlesnake（With auxiliary ）

Product introduction

Technical Parameters：
Power supply: AC90-AC240 50-60HZ

Number of main light beads: 12 40w high brightness four in one light beads

Quantity of auxiliary light beads: 5050RGB-SMD 144 pieces

Light source lifespan: an average of 30000 hours

Maximum power: 600W

Strobe: 1-25 times/second

Zoom angle: 4-45 degrees

Focusing system: segmented independent single point single control

Dimming: Electronic dimming with 0-100% linear adjustment, with gamma curve dimming frequency adjustable from 1.2K to 25K, macro command dimming with linear stability and smoothness without flicker, using stable constant current drive and power supply, suitable for video recording and shooting

Vertical angle: 220 ° in the vertical direction (16 bit precision scanning). The Y-axis is driven by a high-speed silent 60 three-phase motor, which makes the operation faster and smoother. When there is a misoperation, it can automatically return to its original position, and the vertical speed is adjustable; Y-axis rotation function and reverse function; Using optical electromagnetic coding for high-precision positioning

Control signal: DMX512, master-slave, voice controlled or self-propelled program

Control channel: 27/62 two DMX channel modes

Product size: 107 * 36 * 19CM

Net weight of product: 15KG
