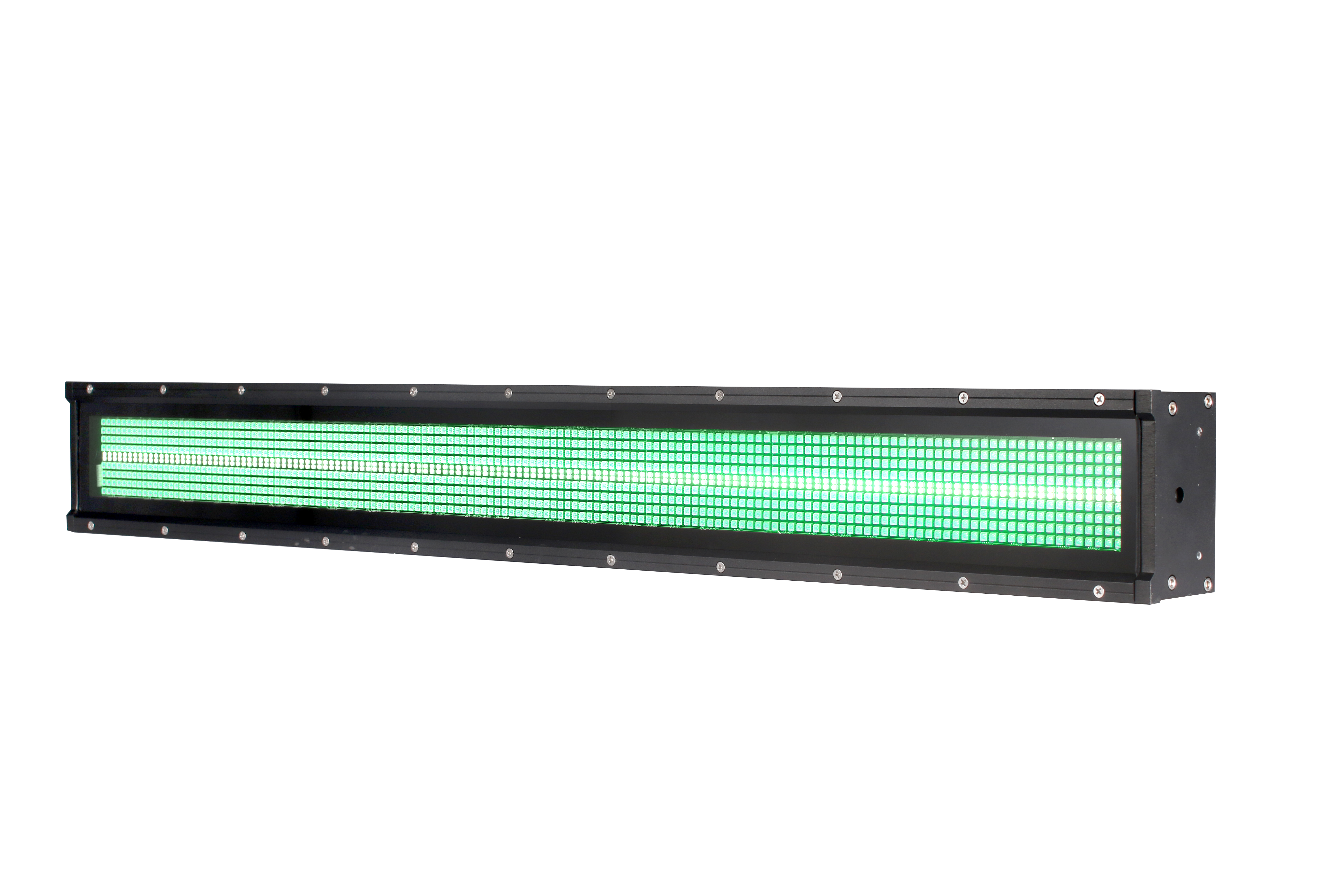

Colorful Curtain Lamp

Product introduction

Technical parameters:

Light source:

Color light: 1152 0.3W RGB LEDs

White light: 288 1W LEDs

Spot angle:

Color light spot angle: 108 °

Control panel: OLED display screen

Control protocol: DMX512, RDM, master-slave

Standard channel mode: 16

Control channel: 4/16/124

Software upgrade: Update software through DMX connection

Electrical and Interface:

Input voltage range: 180-240V~50/60Hz

Power: 500 W

Power socket: Waterproof power connector input/output

Signal input/output: Three core/waterproof socket

Lamp specifications:

Length: 1016mm

Width: 119 mm

Height: 142 mm

Net weight of lamp: 9.8 kg

Work environment:

Maximum ambient temperature: 40 ° C

Minimum operating temperature: -10 ° C

Maximum surface temperature: 65 ° C

Protection level: IP66

Installation:

Can be installed horizontally or vertically

Universal operating position

2 folding light hooks suitable for 50mm light racks
