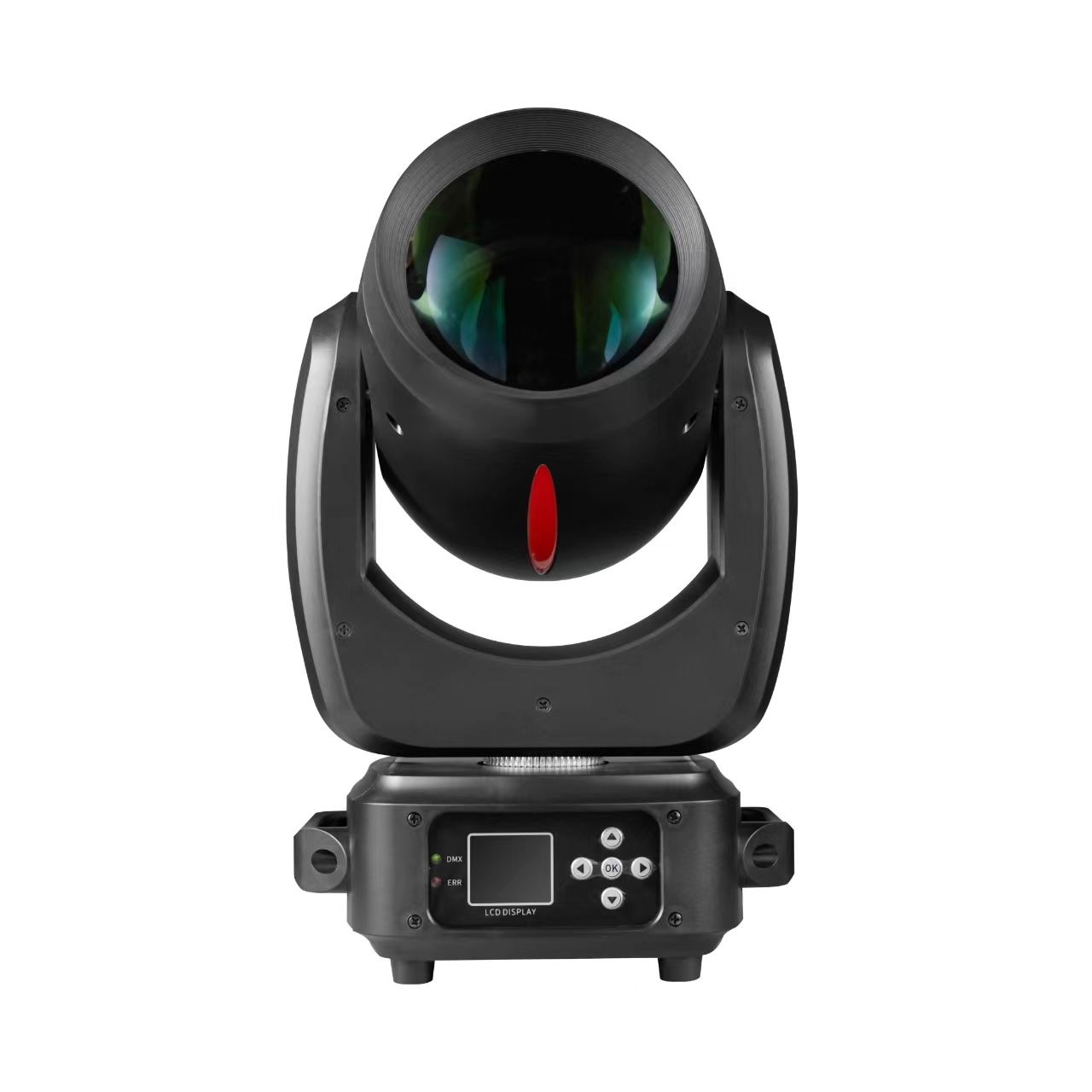

Dongfeng beam

Product introduction

Technical parameters:
1. Rated voltage: AC100-240V, 50/60Hz
2. Rated power: 180W
3. Lamp bead: 120W white light
4. Heat dissipation system: convective heat transfer, air cooling, intelligent temperature control protection
5. Lens: High precision optical lens group
6. Beam angle: 3 degrees
7. Dimming: 0-100% linear dimming
8. Strobe: 0-20 times/second
9. Working mode: DMX512 signal/master-slave/self-propelled/voice control
10. Control mode: International DMX512, 10/13CH
11. Panel display: 0.39-inch 4-digit digital tube+4 buttons
12. Scanning speed: Horizontal 540 º, vertical 270 º/adjustable speed
13. Scan fine-tuning: 8/16 bit
14. Scanning positioning: Electronic automatic positioning
15. Color palette: 12 colors+white light with rainbow effect
16. Pattern plate: 13 patterns+white light, with pattern shaking effect
17. Prism: Honeycomb prism, rotatable, adjustable speed
18. Focusing: Linear focusing
Net weight of lamp: 6.2KG

Gross weight per unit: 7.3KG

Gross weight per box: 15.5KG

Inner box size: 33 * 32 * 46CM

Outer box size: 67 * 35 * 48CM
